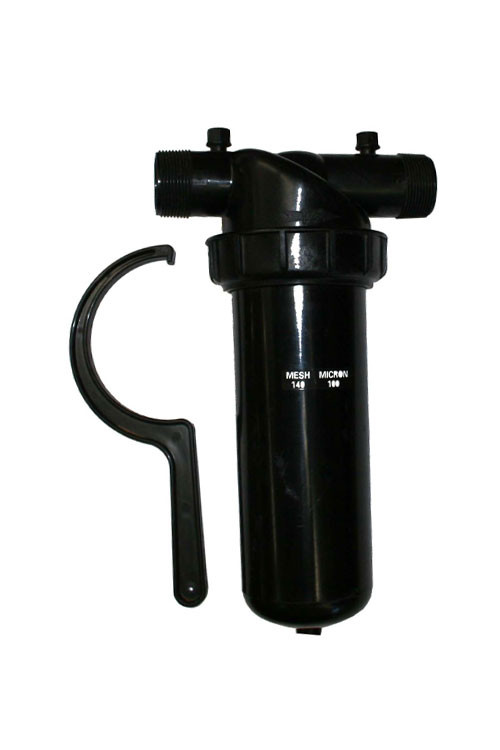

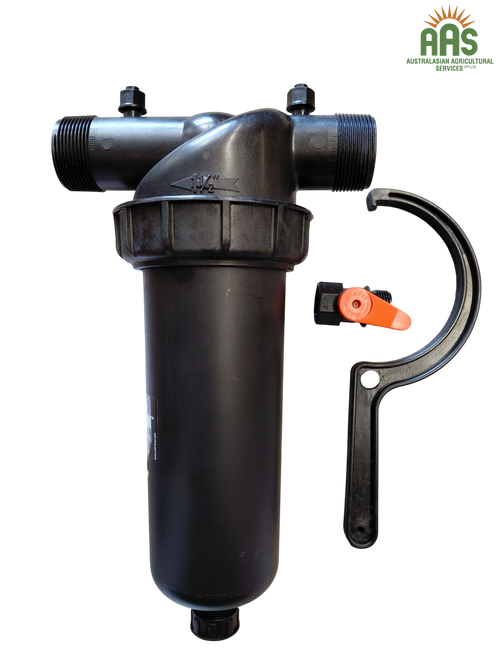

Arkal Filtration Systems Super Disc Filter

• "T" shaped filter with two 1.5" male threads
• "T" volume filter for in-line installation on 1.5" pipelines
• The filter prevents clogging due to its enlarged filtering area that collects sediments and particles
• Manufactured entirely from fiber reinforced plastic
• A cyclindrical column of grooved discs constitutes the filter element
• A sealing spring keeps the discs compressed
• Screw-on filter cover
• Filter discs are available in various filtraton grades

Suits

• All farm types that require water filtration with constant pressure

Technical Information

• Inlet/outlet diameter:
• 1.5" BSPT (male)
• 40mm - nominal diameter
• 48.2mm - pipe diameter (O.D.)
• 1.5" NPT (male)
• Maximum pressure: 145 psi
• Maximum flow rate: 52.8 gpm
• General filtration area: 500cm2
• Filtration volume: 600cm
• Filter length: 350mm
• Filter width: 130mm
• Distance between end connections A: 200mm
• Weight: 1.51kg
• Maximum temperature: 70° C
• pH: 5-11
