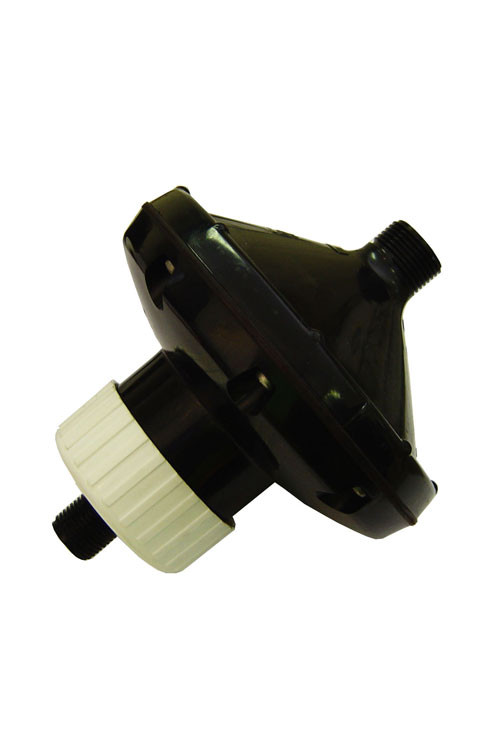

Maxiflo Pressure Regulator 6003

• Designed for one step reduction of water pressure
• Effectively reduces water wastage and assists supression of water hammer
• Regulator can cope with a wide range of inlet pressure fluctuations
• Large diaphragm area gives the MAXIFLO a particularly sensitive characteristic, essential in many installations where fine control of outlet pressure is required
• Multiple installations of the MAXIFLO pressure regulator in parallel gives increased secondary flow
• Regulator only with no fittings

Suits

• Poultry Watering Systems
• Animal Water Systems
• Irrigation Systems

Technical Information

• Temperature Range: 1° - 40°C
• Inlet: 1/2" BSP (15mm)
• Outlet: 3/4" BSP (20mm)
• Maximum Inlet Pressure: 300psi
• Main Seat: 3/8"
• Effective Ratio: 100:1
• Outlet Pressure Range:
• 4 ft to 30 ft hd
• 1 1/2 psi to 13 psi

Alternative Models

• Maxiflo Pressure Regulator 6001
